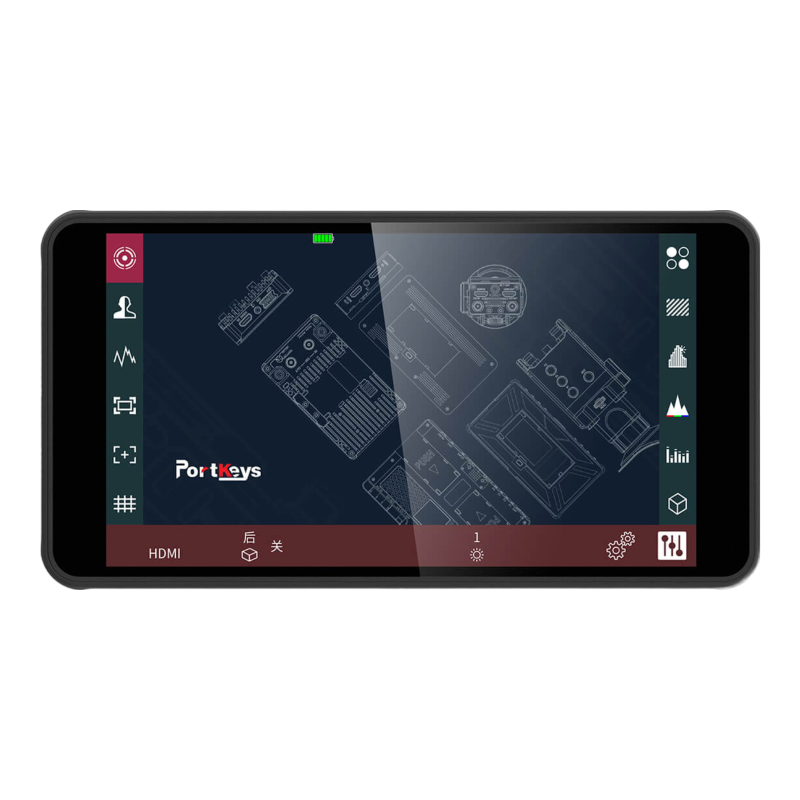

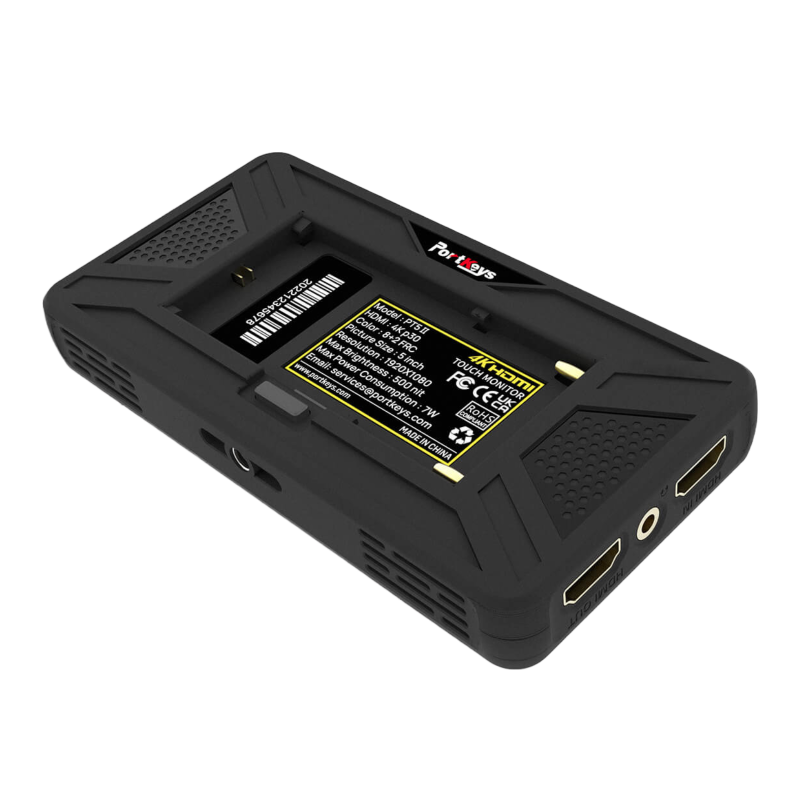

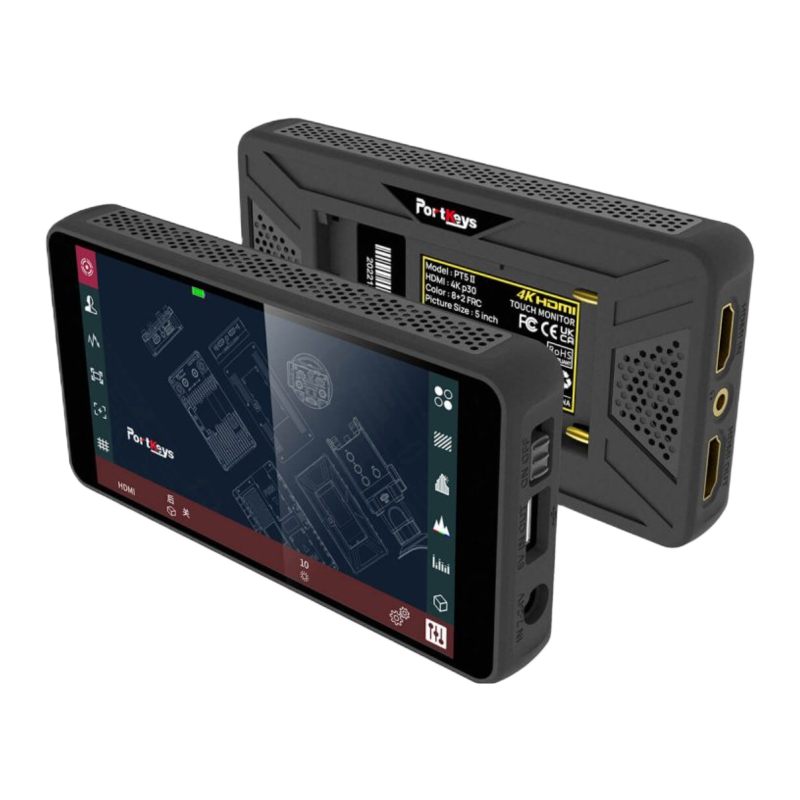

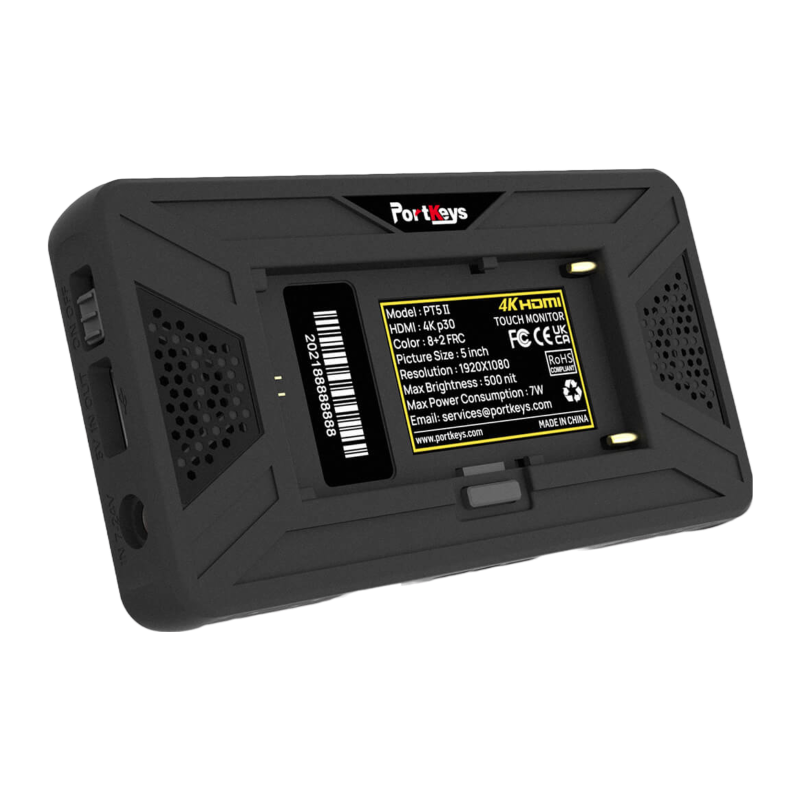

Màn Hình Portkeys PT5 II 5" 4K
Portkeys PT5 II 5" 4K is an entry-level monitor for filmmakers looking for a compact on-camera display. The Portkeys PT5 II 5" 4K features a 10 bit 5-inch 1920 x 1080 display with a 500nit brightness and 1000:1 contrast ratio. Portkeys PT5 II 5" 4K housing with additional heat sink holes. This monitor is much more affordable.
Compact, durable, and lightweight, Portkeys PT5 II 5" 4K is capable of traveling to any on-set environment.
Portkeys PT5 II 5" 4K HDMI Touchscreen Monitor Highlights
- 5″ 1920 x 1080 supports up to HD 4K video
- 500nit brightness
- Wide color gamut
- 10bit (8+2FRC)
- 3D LUT support via USB input
- Monitoring tools include focus peaking, false color, image flip, histogram, color temperature, custom RGB, and more
- 1000:1 Contrast Ratio
Key Functions
- Custom 3D LUT monitoring.
- Exposure tools: RGB and Luma Waveform, Zebra, False Color, Histogram.
- Focusing tools: Peaking, Zooming.
- Framing tools: Check Field, Grids, Image Flip, Cross Hair.
- Audiometers and battery level.
- Display adjustments: Anamorphic, Color Temperature, Contrast, Sharpness, Brightness, Tint, Backlight, Display Flip, Underscan.
Interface
| Video-Input/ Output | Input Interface： 4K HDMI Output Interface： 4K HDMI |
| Support Battery Model | Sony NP-F970/F960/F750/F550 Canon LP-E6 |
Power Input | 7.4~24V |
| USB-A | Upgrade Firmware / Load 3D LUT/ Only supports 5V2A below charger input power |
| Audio Output | 3.5mm Headphone Jack |
####
Portkeys PT5 II 5" 4K is an entry-level monitor for filmmakers looking for a compact on-camera display. The Portkeys PT5 II 5" 4K features a 10 bit 5-inch 1920 x 1080 display with a 500nit brightness and 1000:1 contrast ratio. Portkeys PT5 II 5" 4K housing with additional heat sink holes. This monitor is much more affordable.
