- SKU:RM-503S
- Screen Size:5 inches
- Resolution:1920x1080
- Screen:LED
- Aspect Ratio:16:9
- Housing Material:Metal
- Brightness:450 cd/m^2
- Inputs:HDMI, 3G-SDI, Lan
Product Description

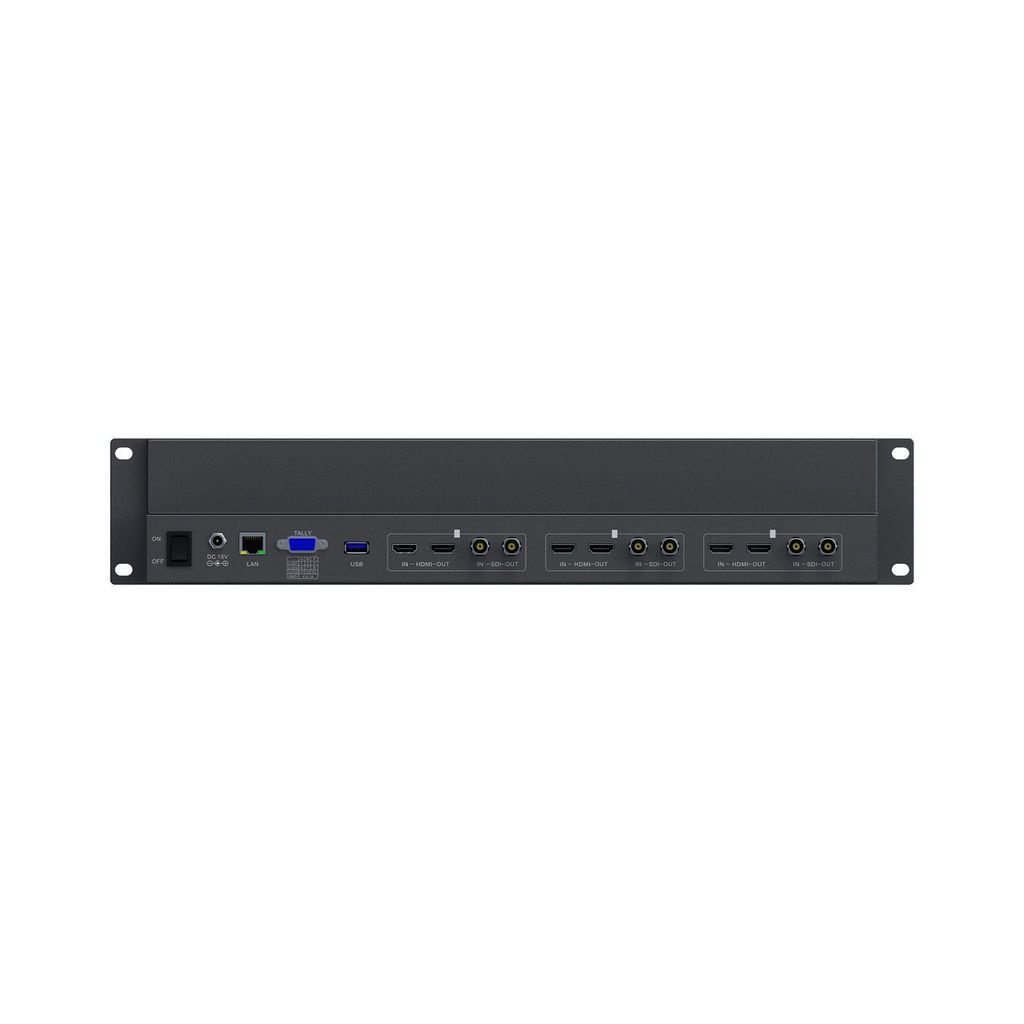

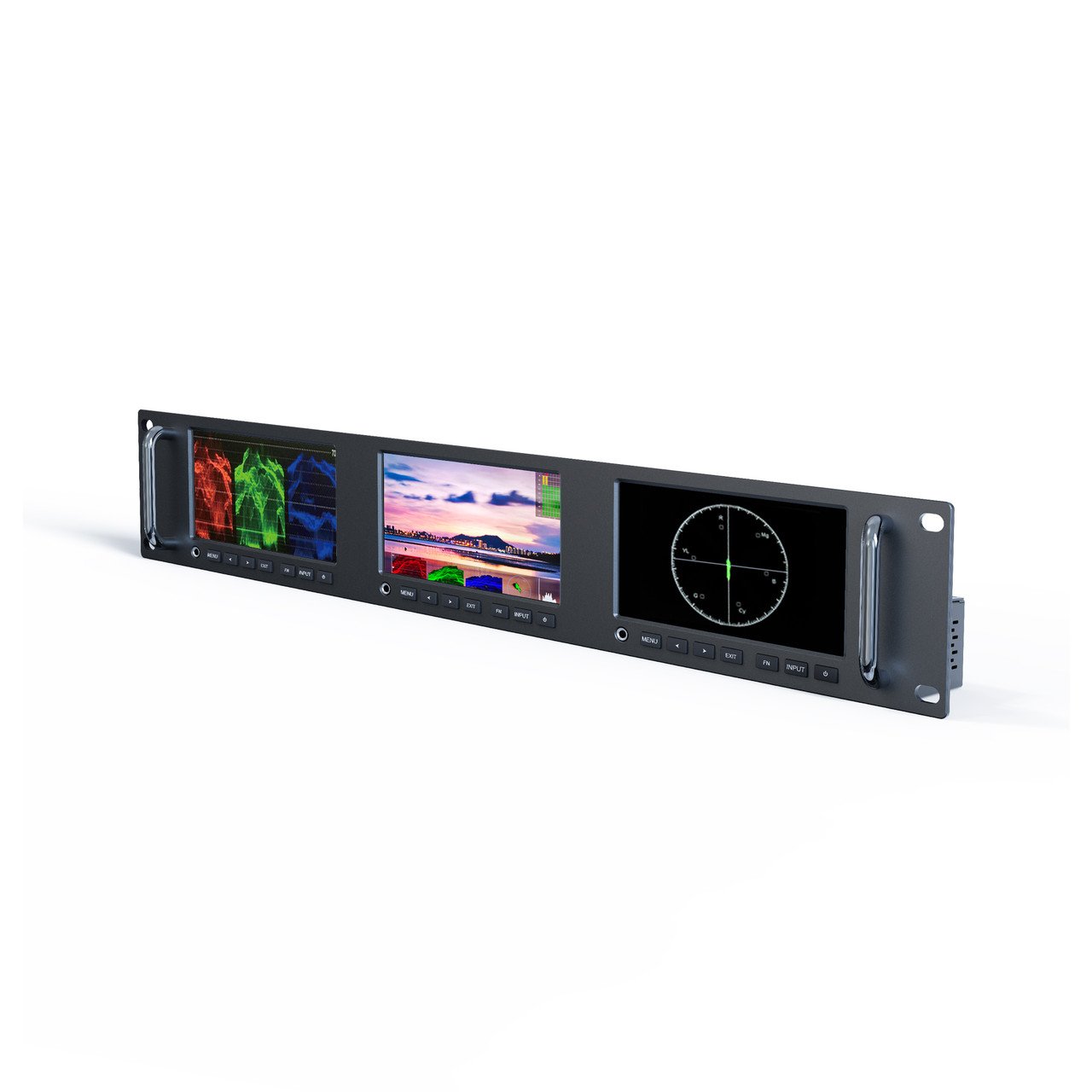

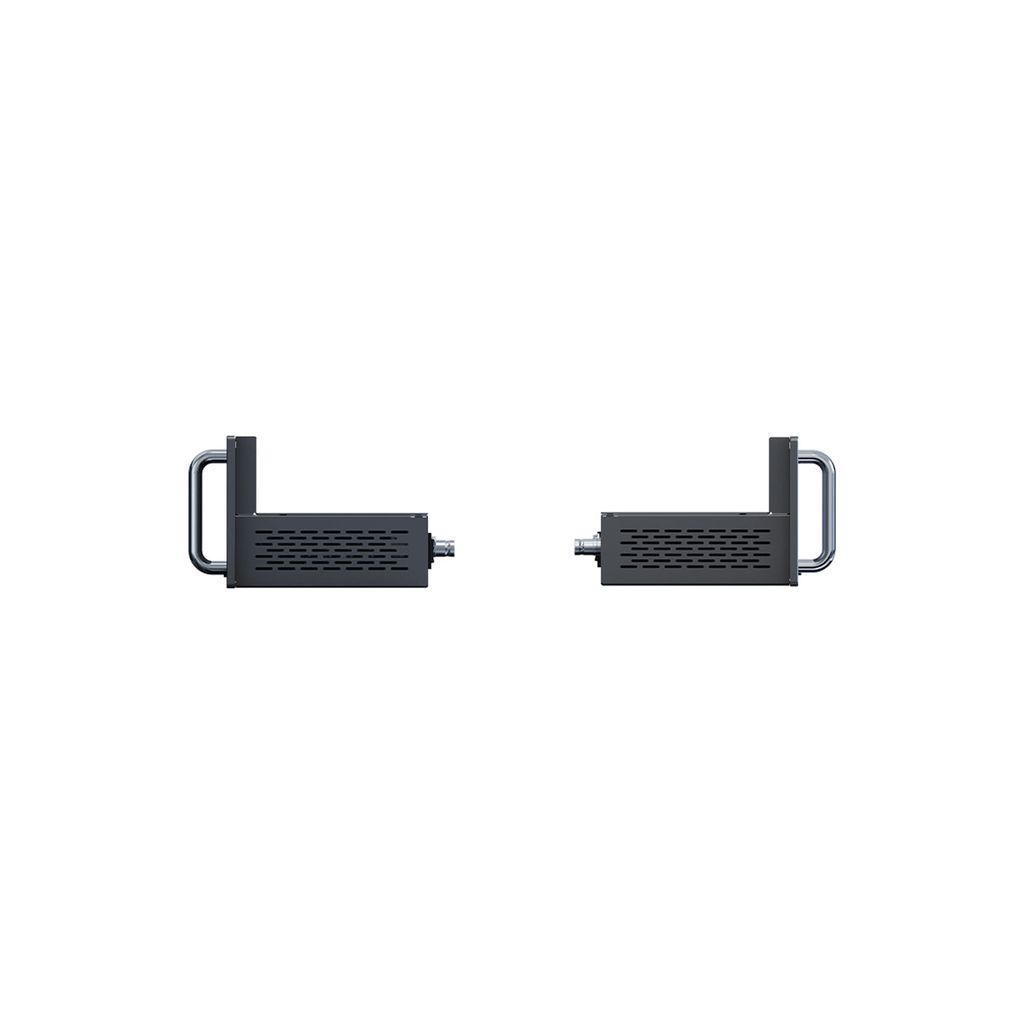

RM-503S 3 x 5 inch 2RU rackmount SDI monitor
| Display | |
| Size | 3×5″ |
| Resolution | 1920×1080 |
| Brightness | 450cd/m² |
| Aspect ratio | 16:9 |
| Contrast | 1000:1 |
| Viewing Angle | 160°/160°(H/V) |
| Color Space | 98% DCI-P3 |
| LUT Support | 3D-LUT (.cube format) |
| Video Input | |
| 3G SDI | 3 |
| HDMI | 3 HDMI2.0(supports up to 4K 60Hz) |
| LAN | 1 |
| Video Loop Output | |
| 3G-SDI | 3 |
| HDMI | 3 HDMI2.0(supports up to 4K 60Hz) |
| Supported In / Out Formats | |
| SDI | 1080p 60/50/30/25/24, 1080pSF 30/25/24, 1080i 60/50, 720p 60/50… |
| HDMI | 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50… |
| Audio In/Out | |
| Ear Phone Slot | 3 |
| Power | |
| Current | 2.5A(12V) |
| DC In | DC 12-24V |
| Power Consumption | ≤27W |
| Environment | |
| Operating Temperature | 0℃~50℃ |
| Storage Temperature | -20℃~60℃ |
| Other | |
| Dimension(LWD) | 480×116×88mm |
| Weight | 2.1kg |
| Display | |
| Size | 3×5″ |
| Resolution | 1920×1080 |
| Brightness | 450cd/m² |
| Aspect ratio | 16:9 |
| Contrast | 1000:1 |
| Viewing Angle | 160°/160°(H/V) |
| Color Space | 98% DCI-P3 |
| LUT Support | 3D-LUT (.cube format) |
| Video Input | |
| 3G SDI | 3 |
| HDMI | 3 HDMI2.0(supports up to 4K 60Hz) |
| LAN | 1 |
| Video Loop Output | |
| 3G-SDI | 3 |
| HDMI | 3 HDMI2.0(supports up to 4K 60Hz) |
| Supported In / Out Formats | |
| SDI | 1080p 60/50/30/25/24, 1080pSF 30/25/24, 1080i 60/50, 720p 60/50… |
| HDMI | 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50… |
| Audio In/Out | |
| Ear Phone Slot | 3 |
| Power | |
| Current | 2.5A(12V) |
| DC In | DC 12-24V |
| Power Consumption | ≤27W |
| Environment | |
| Operating Temperature | 0℃~50℃ |
| Storage Temperature | -20℃~60℃ |
| Other | |
| Dimension(LWD) | 480×116×88mm |
| Weight | 2.1kg |
Product Videos
Screen Size
Screen Size 5 inches
Resolution 1920x1080
Screen LED
Aspect Ratio 16:9
Housing Material Metal
Brightness 450 cd/m^2
Inputs HDMI, 3G-SDI, Lan
