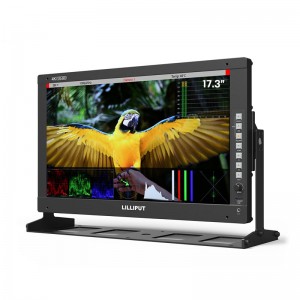

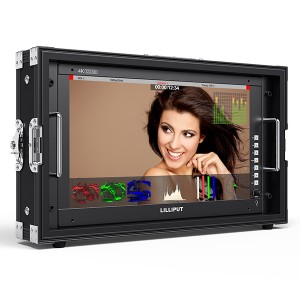

Q17 is 17.3 inch with 1920×1080 resolusiton monitor.It is with 12G-SDI*2 , 3G-SDI*2, HDMI 2.0*1 and SFP *1 interface. Q17 is PRO 12G-SDI broadcast production monitor for pro camcorder & DSLR application for taking photos & making movies. 12G-SDI, 12G SFP+, 4K HDMI and other signal transmission methods are integrated into this display, to avoid being lost in the choice question for video signals. Equipped with 12G-SDI, 3G-SDI and HDMI 2.0 input/output interfaces, it can support up to 4096×2160(60p, 50p, 30p, 25p, 24p)& 3840×2160 (60p, 50p, 30p, 25p, 24p)signal. 12G SFP+interface, which allows to transmit 12G-SDI signal via SFP optical module, is suitable for most broadcast field. The color calibration of Q17 model are including color spaces(SMPTE_C, Rec709 and EBU) and color temperature(3200K, 5500K, 6500K, 7500K,9300K) and gammas (value from 1.8 to2.8). It can support remote control application. To connect your computer to control the monitor via applications. The interfaces of RS422 in and RS422 out can realize synchronization control of multiple monitors like picture, source, marker, audio, function, UMD. It can support Audio Vector, HDR and 3DLUT function.
- Model:Q17
- Display:17.3 inch, 1920×1080, 300nits

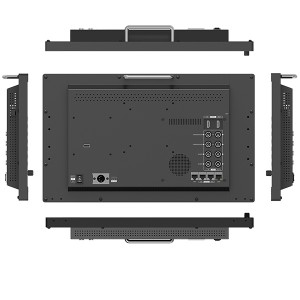

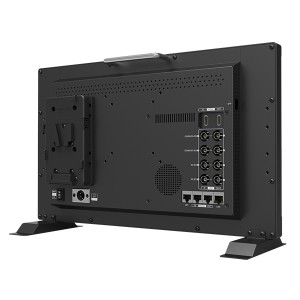

- Input:2×12G-SDI, 2×3G-SDI, 12G SFP, HDMI 2.0
- Output:2×12G-SDI, 2×3G-SDI, HDMI 2.0
- Control interfaces:LAN in, GPI in, RS422 In & out
- Feature:3D-LUT, HDR, Remote terminal...
12G-SDI / 4K HDMI signal
12G-SDI, 4K HDMI, 12G SFP+ and other signal transmission methods are integrated into this display,to avoid being
lost in the choice question for video signals.Equipped with 12G-SDI, 3G-SDI and HDMI 2.0 input/output interfaces,
it can support up to 4096×2160 (60p, 50p, 30p, 25p,24p) & 3840×2160 (60p, 50p, 30p, 25p, 24p) signal. 12G SFP+
interface, which allows to transmit 12-SDI signal via SFP optical module, is suitable for most broadcast field.
Color Spaces
It is different from the old single color space “Native” mode used to match the colors of its screen, there are also three modes
to choose, including “SMPTE_C”, “Rec709” and “EBU”. Aim to restore the original color in different color spaces picture.
Color Temperature
According to the different senses of the pictures, filmmaker have their own preferences for different color temperatures.The default
is 3200K / 5500K / 6500K / 7500K / 9300K five color temperature conditions, can also be customized according to user needs.
Gammas
Gamma redistributes tonal level closer to how our eyes perceive them. Since Gamma value is adjusted from
1.8 to 2.8,more bits would be left to describe the dark tones where the camera is relatively less sensitive.
Select an appropriate port from LAN or RS422 to connect to the user’s operating
interface, allowing the application to identify the monitor before control.
Remote Control Application
Connect your computer to control the monitor via applications. The interfaces of
RS422 In and RS422 Out can realize synchronization control of multiple monitors.
Audio Vector Figures
The Lissajous shape is generated by graphing the left signal on one axis against the right signal on the other axis.
It used to test the phase of mono audio signal and phase relationships depends on its wavelength. Complex
audiofrequency content will make the shape look like a complete mess so it is usually used in post production.
HDR
When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing lighter and darker details to be
displayed more clearly. Effectively enhancing the overall picture quality. Support ST2084 300 / ST2084 1000 / ST2084 10000 / HLG.
3D-LUT is a table for quickly looking up and output specific color data. By loading different 3D-LUT tables,
it can quickly recombine color tone to form different color styles. Rec. 709 color space with built-in 3D-LUT,
featuring 8 default logs and 6 user logs.Supports loading the .cube file via USB flash disk.
