- Support standard 12G-SDI input, 3G-SDI input, support Single-Link,Dual-Link and Quad-Link signals
- Support HDMI 2.0/ 1.4 inputs and loop outputs. Support SFP input, optical module for optional.
- Input signals support up to 3840×2160 3840×2160 60/ 59.94/ 50/ 30/ 29.97/ 25/ 24/ 23.98p and 4096×2160 60/ 59.94/ 50/ 48/ 47.95/ 30/ 29.97/ 25/ 24/ 23.98p; Signal Loo pout.
- Monitor control via GPI/ RS422/ LAN.
- Support customized various waveform mode: Waveform/ Vector/ Histogram/ Audio Vector/ Level Meter.
- HDR display supporting ST 2084/ Hybrid Log Gamma.
- Custom 3D LUT file load through USB.
- Gamut supporting SMPTE-C/ Rec709/ EBU.
- Color Space/ HDR/Gamma / Camera Log comparison with original (side by side)
- Color Temperature: 3200K/ 5500K/ 6500K/ 7500K/ 9300K/ User

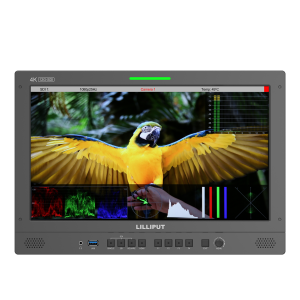

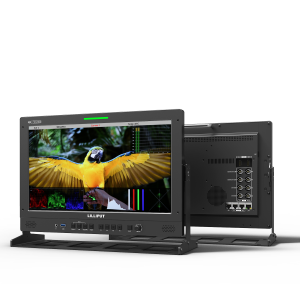

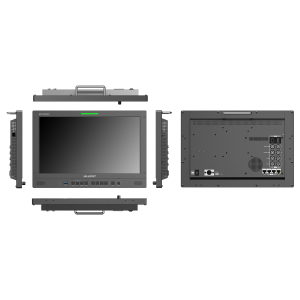

- Model::Q15

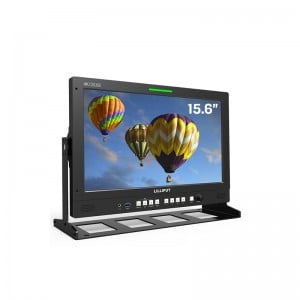

- Display::15.6 inch, 3840 X 2160, 300nits

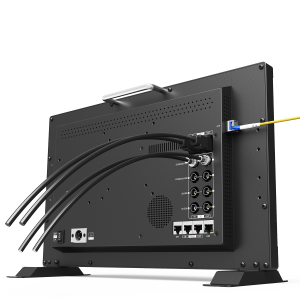

- Input::12G-SDI, 12G-SFP,HDMI 2.0
- Output::12G-SDI,HDMI 2.0
- Remote Control::RS422 ,GPI , LAN
- Feature::Quad View,3D-LUT, HDR,Gammas,Remote Control ,Audio vector...
Color Temperature
According to the different senses of the pictures, filmmaker have their own preferences for different color temperatures. The default is 3200K / 5500K / 6500K / 7500K / 9300K five color temperature conditions, can also be customized according to user needs.
Gammas
Gamma redistributes tonal level closer to how our eyes perceive them. Since Gamma value is adjusted from 1.8 to 2.8, more bitswould be left to describe the dark tones where the camera is relatively less sensitive.
Audio Vector (Lissajous)
The Lissajous shape is generated by graphing the left signal on one axis against the right signal on the other axis. It used to test the phase of mono audio signal and phase relationships depends on its wavelength.Complex audio frequency content will make the shape look like a complete mess so it is usually used in post production.
HDR
When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing lighter and darker details to be displayed more clearly. Effectively enhancing the overall picture quality. Support ST2084 300 / ST2084 1000 / ST2084 10000 / HLG.
3D-LUT
3D-LUT is a table for quickly looking up and output specific color data. By loading different 3D-LUT tables, it can quickly recombine color tone to form different color styles. Built-in 3D-LUT, featuring 17 default logs and 6 user logs.
3D LUT LOAD
Supports loading the .cube file via USB flash disk.
