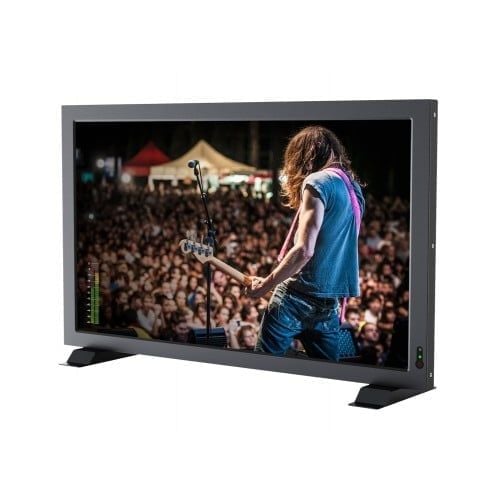

The Lilliput PVM210 HDMI input monitor is a sturdy and solid addition to your performance capture or exhibition showplace setup. Designed for use as an assistant or confidence monitor in live show production, or as a preview / editing display in a video editing suite, it will fit into any number of workflows and production environments - particularly with its specification stretching ability to display a 4K feed on its 1080p native panel.
| Aspect Ratio | 16:9 |
| Brightness | 1000cdm² |
| Contrast Ratio | 1500:1 |
| Resolution | 1920 x 1080 - 101% REC.709 |
| Viewing Angle | 170° / 170° |
| Screen Size | 21.5" |
| HDMI Video Inputs | 2160p 24 / 25 / 30 / 50 / 60 :: 1080p 24 / 25 / 30 / 50 / 60 :: 1080i 50 / 60 :: 720p 50 / 60 |
| Dimensions | 524.8 mm x 313.3 mm x 19.8 mm |
| Weight | 4.8 Kg |
| Audio Output | 2x Speakers |
| Input Voltage | DC 12-24V |
| Power Consumption | <=36W (15V) |
| Operating Temperature | 0°c to 60°c |
| Storage Temperature | -20°c to 60°c |
 |
 |
Depending on the specific way you will be using the monitor, there are hundreds of places it can be configured to fit. With a robust suite of both current and legacy input connections - such as HDMI, DVI, and VGA - along with analogue AV - it can accept inputs from cameras, and mixing desks and suites - any video source of your choice. Need a monitor for a stage performance or presenter to use as a confidence monitor? The PVM210 has you covered. |
 |

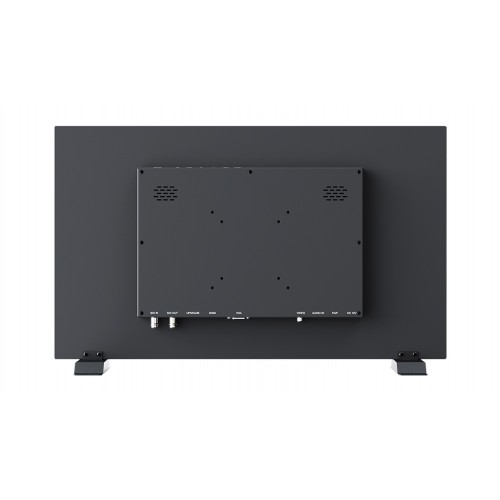

As well as the input options listed above, the PVM210 can also be purchased with an optional SDI input - to increase the input flexibility of the unit and allow for even wider usage. Looking to use it in an editing suite or an office? It can be mounted to a wall or any flat surface using the VESA 100 mounting hole set and any suitable wall mount. |
 |
With fluctuating audio sources being a constant in the recording world, we provide the PVM210 unit with built in audio level monitoring so as to make it easy to spot when your source audio peaks too high and clips, or could ruin a take through excessive interference |
 |
HDR lighting is a must for all modern monitors and TV sets, and the PVM1210 is no slouch in this department. With support for HLG, ST2084 300 / 1000 / 10000 formats you can be assured of a good representation of the brighter, bloomy lights of your shots. |
