Key Features
- 1080p60 Transmitter/Receiver 1800' Range
- Multi-Cam Transmitter and Control System
- 4 x Transmitters to 1 x Receiver
- Transmits LAN/RS-422/RS-485 Control
- SDI/HDMI Input and Output
- 0.07 Second Latency
- Allows PTZ Camera Control Wirelessly
- Supports Tally
- Built-In Battery Plate
Hollyland Syscom 421 Overview

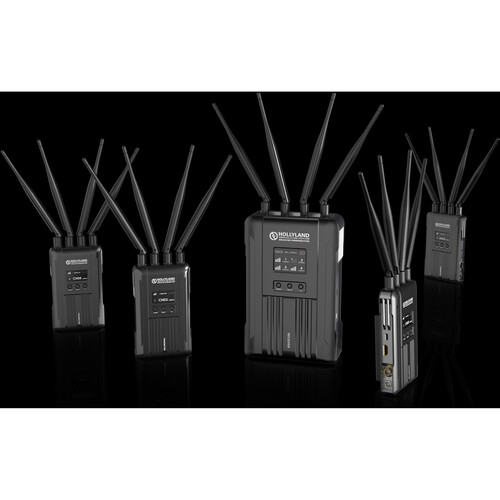

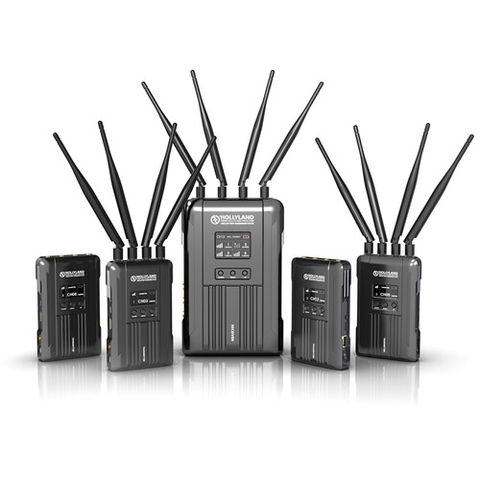

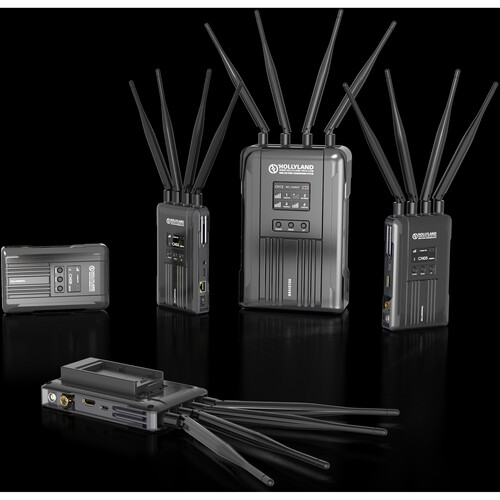

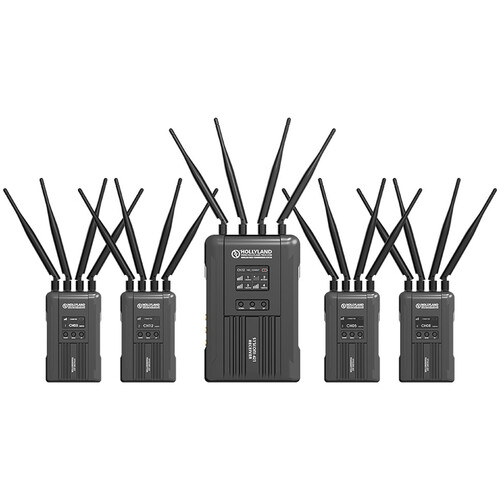

The Hollyland Syscom 421 1800' Wireless Video & Audio Transmission System is a multi-cam wireless video transmission system that communicates with up to four cameras using a single receiver with PTZ control as well as tally. Supporting up to 1080p60 video signals via SDI and HDMI, the transmitter/receiver system offers an 1800' line-of-sight transmission range with 0.07 second latency.

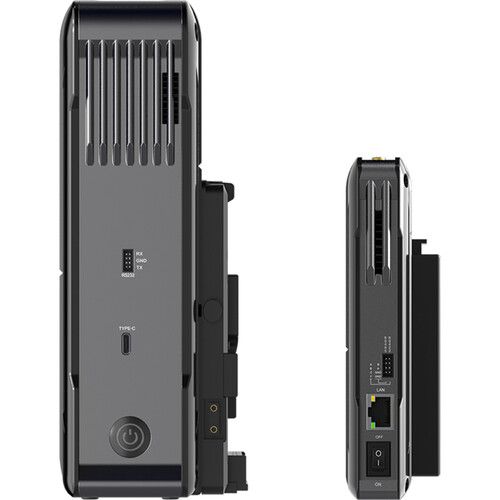

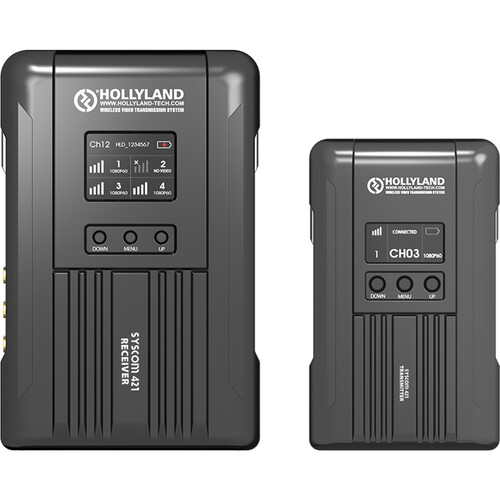

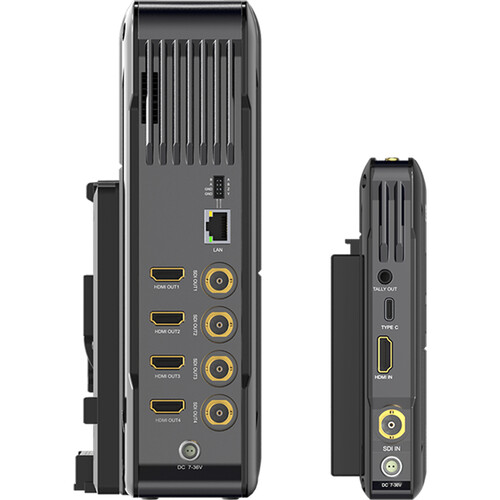

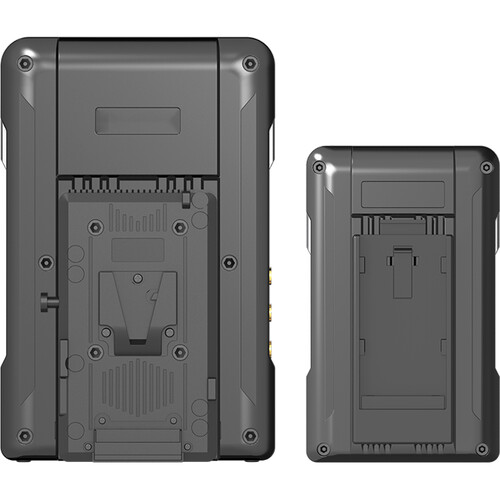

The receiver features 4 x SDI/HDMI outputs (one for each transmitter) for connecting to a monitor or switcher. You can also connect the receiver to a LAN, allowing you to pass control signals from a control panel to the transmitters. This enables you to control PTZ cameras as well as send tally information. The transmitters have a dedicated tally output port. Both units also have an OLED display that confirms the resolution, transmission channel, signal strength, and other details such as battery power. The transmitters each have a built-in L-series battery plate, and the receiver has a V-mount battery plate. Both Transmitter and receiver feature a 2-pin power input for extended run times.
Key Features
- Up to 1080p60 transmitter/receiver system
- 1800' line-of-sight transmission
- SDI and HDMI input
- SDI and HDMI output
- Passes control and tally
- OLED display
