- ✔ 17.3 Inch; 1920x1080 Resolution; 127 PPI; 35.1mm Thickness; 600:1 Contrast Ratio; 16:9 Aspect Ratio; 400 nit LED Backlight.
- ✔ Built-in 3G-SDI HDMI YPbPr DVI AV input, 3G-SDI HDMI YPbPr Video output and Stereo Headphone. Support Format of 480i/480p/576i/576p/720p/1080i/1080p/4K.
- ✔ Widely used in TV news production, broadcasting house, TV broadcasting truck and other fields. High stability, reliability and electromagnetic compatibility.

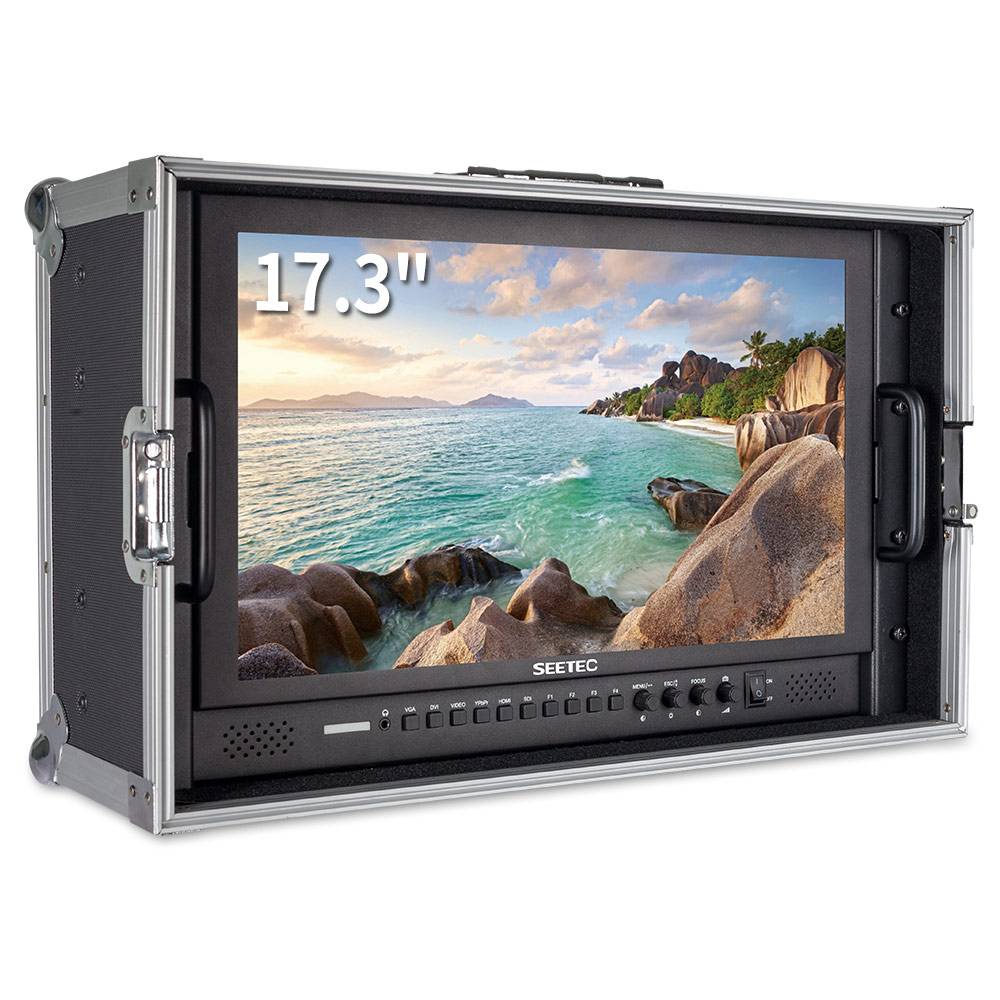

- ✔ Special designed with alumunium carry-on box. Easy to packed up, easy to carry with. Protect your monitor from damaging and scratching, abrasion-resistance.
- ✔ Official Direct Store of Feelworld and Seetec brand, able to sell any products wholesale or retail even provide customization according to your requirement. Contact us without hesitation no matter what problems you have.

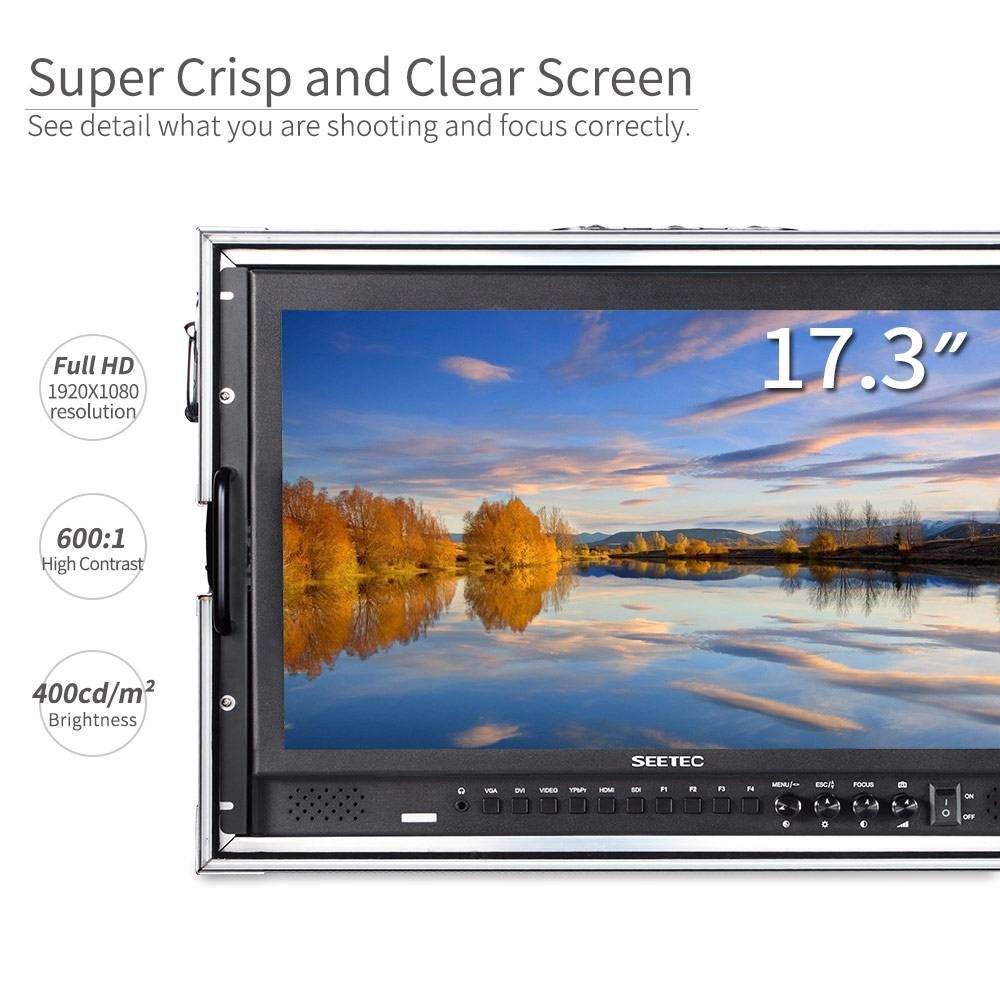

1920X1080 Full HD Panel
With the P173-9HSD-CO's 17.3-inch 1920×1080 Full HD panel what you see is truly viewing angles outputting crisp, clear shots on the field, which means less time in the editing room. The P173-9HSD-CO's Full HD Panel is the tool of choice for high quality color reproduction.
Innovation OSD Operation
P173-9HSD-CO not only set up four "F key" for peaking focus asist, check field, camera mode function, pixel to pixel, Center Marker, Safe Marker, Image Flip and so on, reserves the knob for professional users. Double functions and knob type coding switch are SEETEC's exclusive technology feature, which will bring you more convenient and rapid operate feeling.

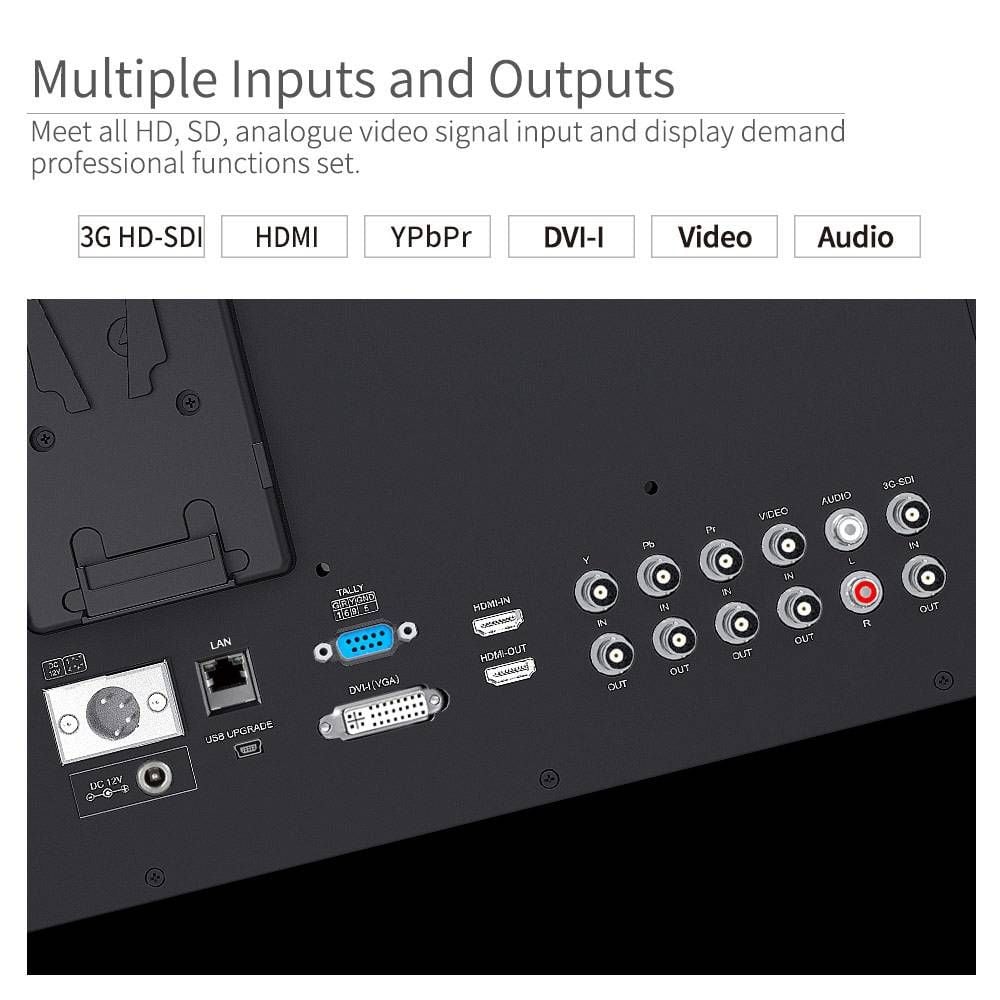

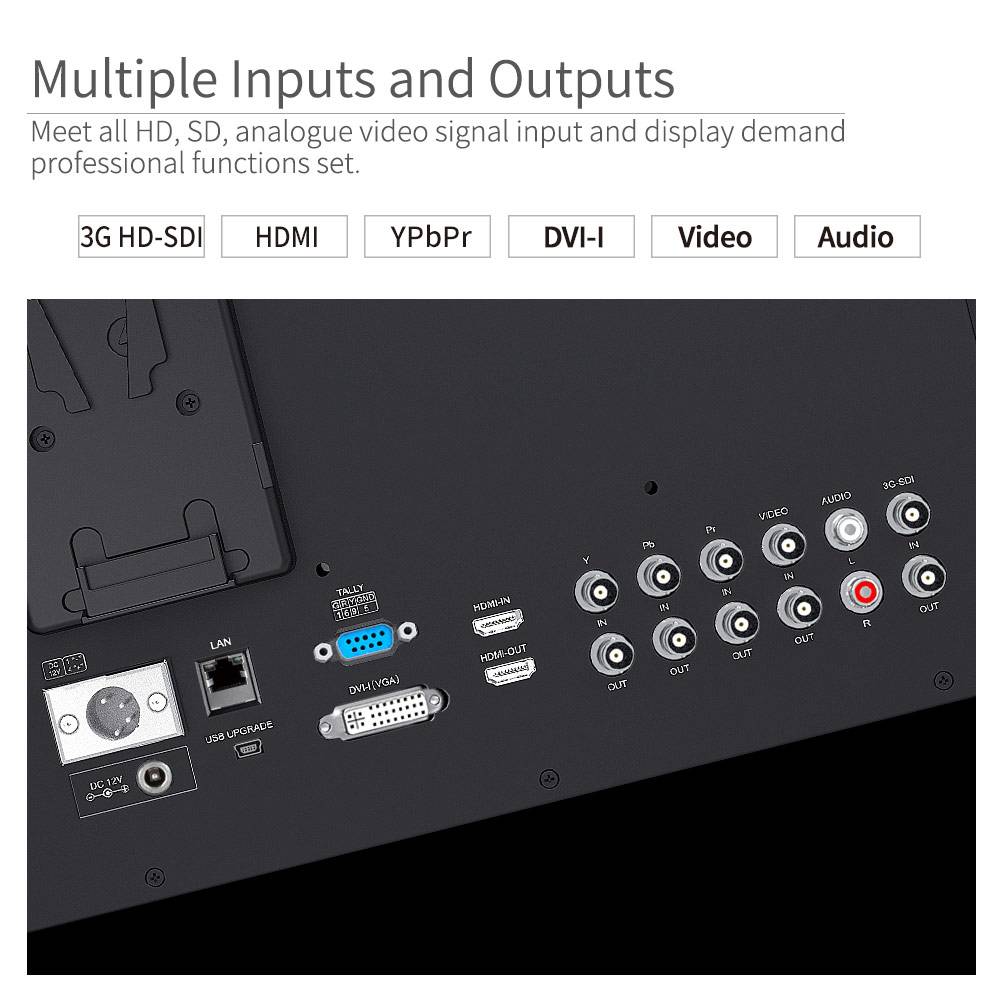

Multiple Inputs and Outputs
Multiple input formats meet the needs of the professional input and display functions with all HD, SD, analogue video signal inputs. The monitor comes with 3G HD-SDI, HDMI, Composite, and Component input and ouput.
P173-9HSD-CO has both HDMI and SDI in and out, to allow it not only display live signals, but also send them out to other monitors simultaneously. It's able to display live picture on multiple displays at the same time while it still maintains the original. video quality.
3-color Tally Light
Both front and rear side
There is front and rear TALLY lights for with 3 colors display (Red, Green, Yellow), and controlled via DB-9 ports on the rear panel.
Unique Design for High Efficency
Time and Costs are important for film crews. This becomes more obvious if there are frequent scene changes during production. The P173-9HSD-CO is based on how monitors are being used by film crews. Whether packing down or setting up a simplified design makes this monitor ready for use quickly. There are no complex setup processes to go through.

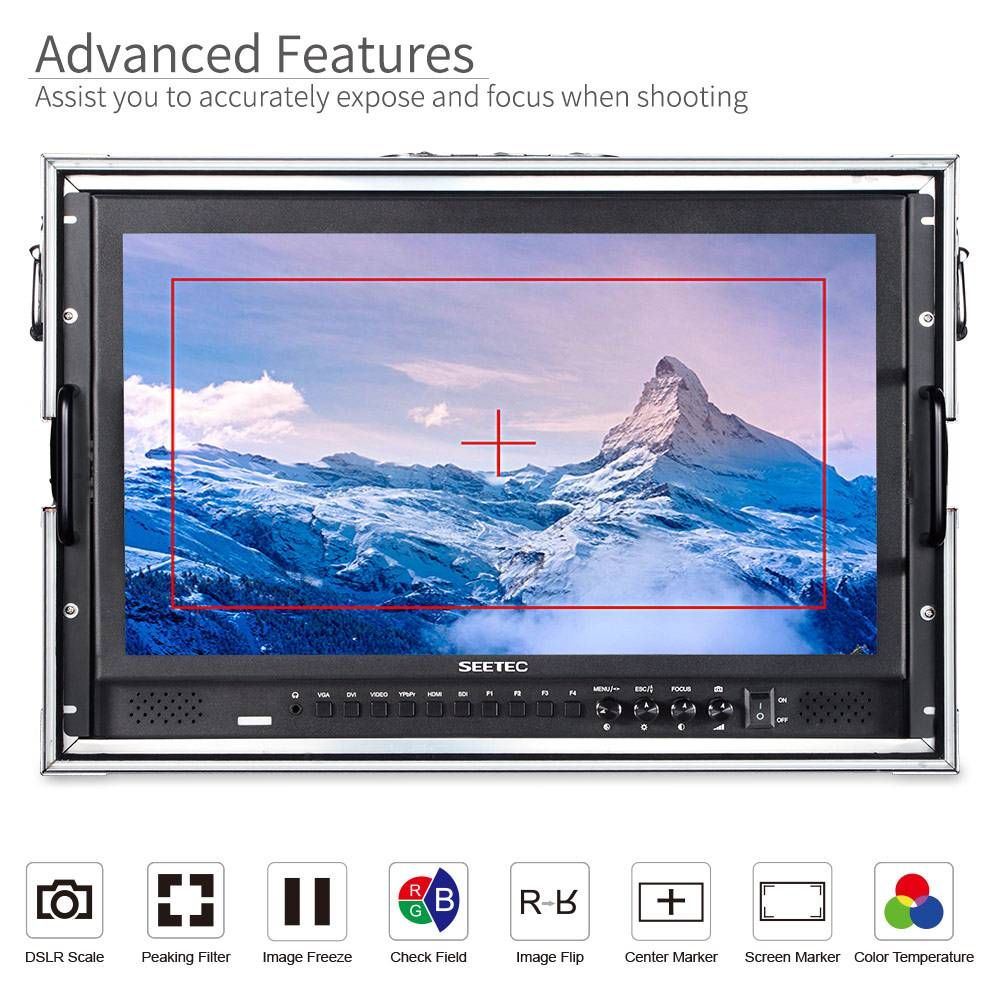

Video Assist Functions
1. Wide view angle, Full HD 1920x1080, bright, colorful display* Peaking Focus Assist (Red highlight over parts of the monochrome image in focus)
* Check Field (Red, Green, Blue, Mono)
* Camera Mode
* Pixel to Pixel
* Center Marker
* Safe Marker (80%, 85%, 90%, 93%, 96%, 2.35:1)
* Image Flip (Horizontal, Vertical, Hor&Ver)
* Image Freeze
* Zoom All
* U/D & L/R Zoom
